Inkbird ICC-500T CO2 Controller CO2 Meter Carbon Dioxide Controller for Grow Room and CO2 Generator with CO2 Sensor for Home Grower (CO2 Controller + S01 Sensor)
Inkbird ICC-500T CO2 Controller CO2 Meter Carbon Dioxide Controller for Grow Room and CO2 Generator with CO2 Sensor for Home Grower (CO2 Controller + S01 Sensor)
- 【Double Outlets】Pls plug CO2 regulator or generator into WORK1, exhaust fan into WORK2 - 【Programmable】Controls the CO2(ppm) within the desired range and supports calibration and alarms - 【Plug-n-play】The CO2 controller will turn on/off the device when reaches the desired CO2(ppm) level - 【Digital Display】Both the measured CO2 and the desired CO2 are (ppm)displayed on the CO2 Controller - 【Reliable】CE&FCC certificated. S01 Sensor is suitable for home growing and HVAC Equipment
Product description

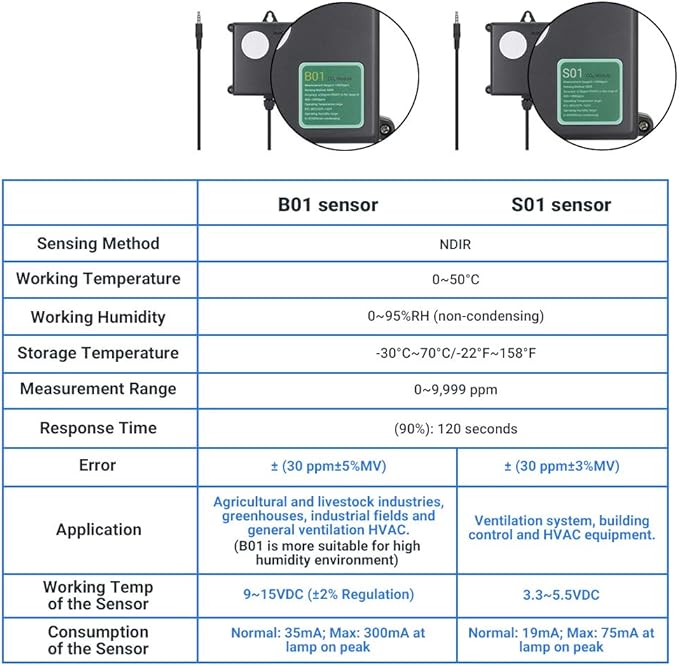

The difference between S01 and B01 sensor
Multiple uses
Main Features of ICC-500T CO₂ controller with S01 sensor
● Plug and play, simple operation.
● Dual relays, are able to connect with the CO₂regulator or generator and the exhaust fan simultaneously.

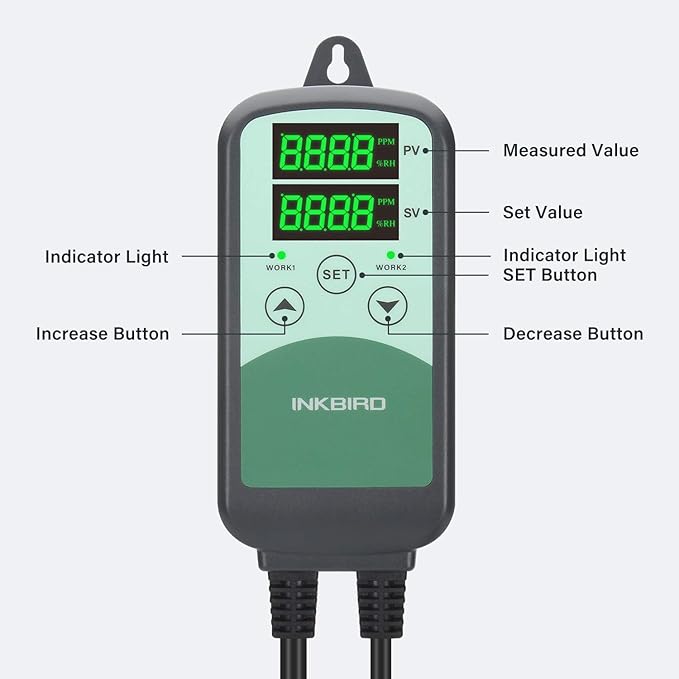

● Dual readouts, displays the current measured CO₂ concentration and the set CO₂ concentration simultaneously.
● CO₂ calibration.
● Programmable high/low CO₂ concentration alarm.
● Widely applied in ventilation system, building control and HVAC equipment.
Specifications of ICC-500T CO₂ Controller
When the CO₂ sensor is inserted, the controller will take about 8 seconds to identify. Then the PV window will display 8888 and blink, the SV window will display the CO₂ concentration setting.
After 120 seconds, CO₂ module works stably, and the PV window stops blinking and displays the measured CO₂ concentration. Within 120 seconds, the buttons cannot be operated , the indicators of WORK1 and WORK2 are off, and the WORK1 and WORK2 have no output.

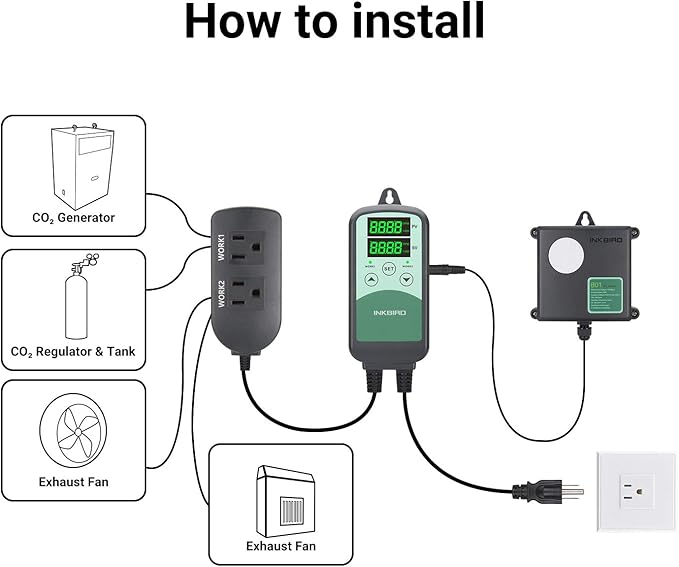

The controller will automatically identify and convert the CO₂ regulator or generator and the exhaust fan. WORK1 is the output of the CO₂ regulator or generator, and the WORK1 indicator is the WORK1 output status indicator. WORK2 is the output of the exhaust fan, and the WORK2 indicator is the WORK2 output status indicator.
WORK1 Only for the CO₂ regulator or generator, WORK2 Only for the exhaust fan.
There are three modes can be set, for more information about setting, please refer to the user manual on the listing page.
